ROG Ryujin 360 all-in-one liquid CPU cooler with LiveDash color OLED, Aura Sync RGB and 3x Noctua iPPC 2000 PWM 120mm radiator fans
-
Water Block
Water Block Dimension: 100 x 100 x 70 mm
Block Material (CPU plate): Copper
CPU Socket Support: Intel: LGA 115x,1366, 2011, 2011-3, 2066；AMD: AM4, TR4* -
Radiator
Radiator Dimension: 394 x 121 x 27 mm
Radiator Material: Aluminum
Tube: Sleeved Rubber tube
Tube Length: 380 mm -
Fan

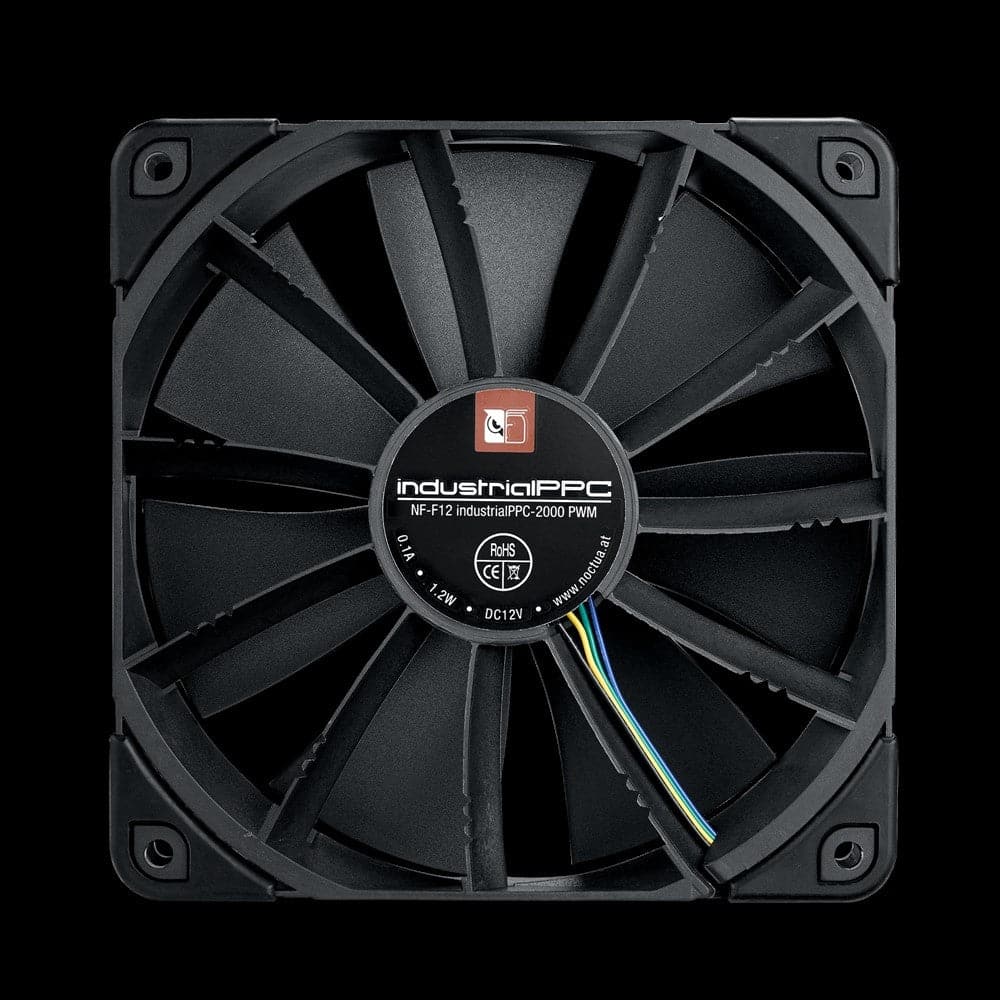

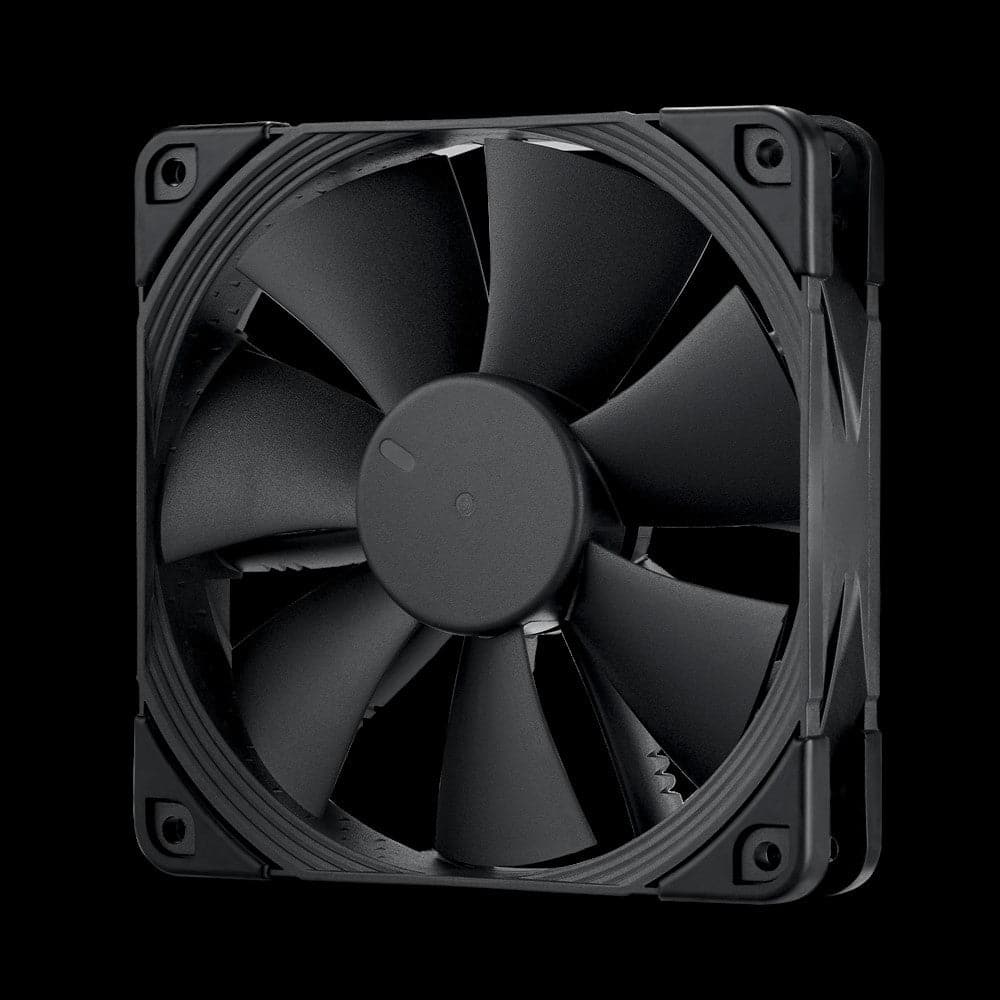

Fan: 3 x Noctua NF-F12 industrialPPC 2000 PWM
Fan size: 3 Fan Slots (120mm)
Fan Dimension: 120 x 120 x 25 mm
Fan Speed: 450 ~ 2000 RPM +/- 10 %
Fan Static Pressure: 3.94 mmH2O
Fan Air Flow: 71.6 CFM / 121.8 m3h
Fan Noise: 29.7 dB(A)
Control Mode: PWM -
Special Features
OLED Display: 1.77 " Full Color OLED
AURA Sync Support: Yes
Embedded FAN: Y
Embedded Fan Speed: 4800 RPM +/- 10 %
Embedded Fan Air Pressure: 3.23 mmH2O
Embedded Fan Air Flow: 19.41 CFM
Embedded Fan Noise: 31 dB(A) -

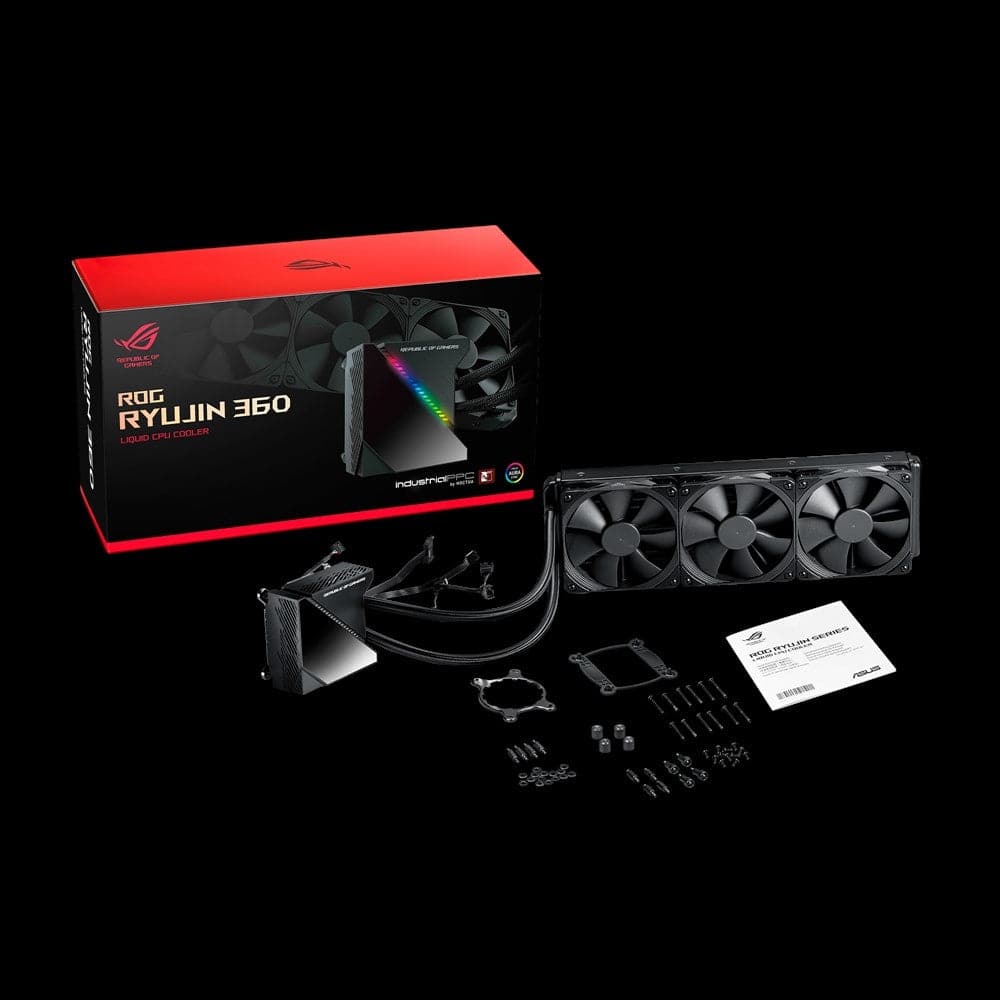

Package Content
ROG RYUJIN 360 Liquid Cooler
Accesory Pack of Scews and brackets
3 x 120mm Noctua NF-F12 iPPC 2000 PWM Fan
Thermal compound (pre-applied)
Quick Start Guide
-
Compatibility
Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4* -
Warranty
Warranty: 3 years
-
Note
*The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN's package
** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding
*** Hardware monitor and fan control is optimized for ASUS motherboards
**** for control radiator FAN from the Y-Cable and embedded fan on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler
