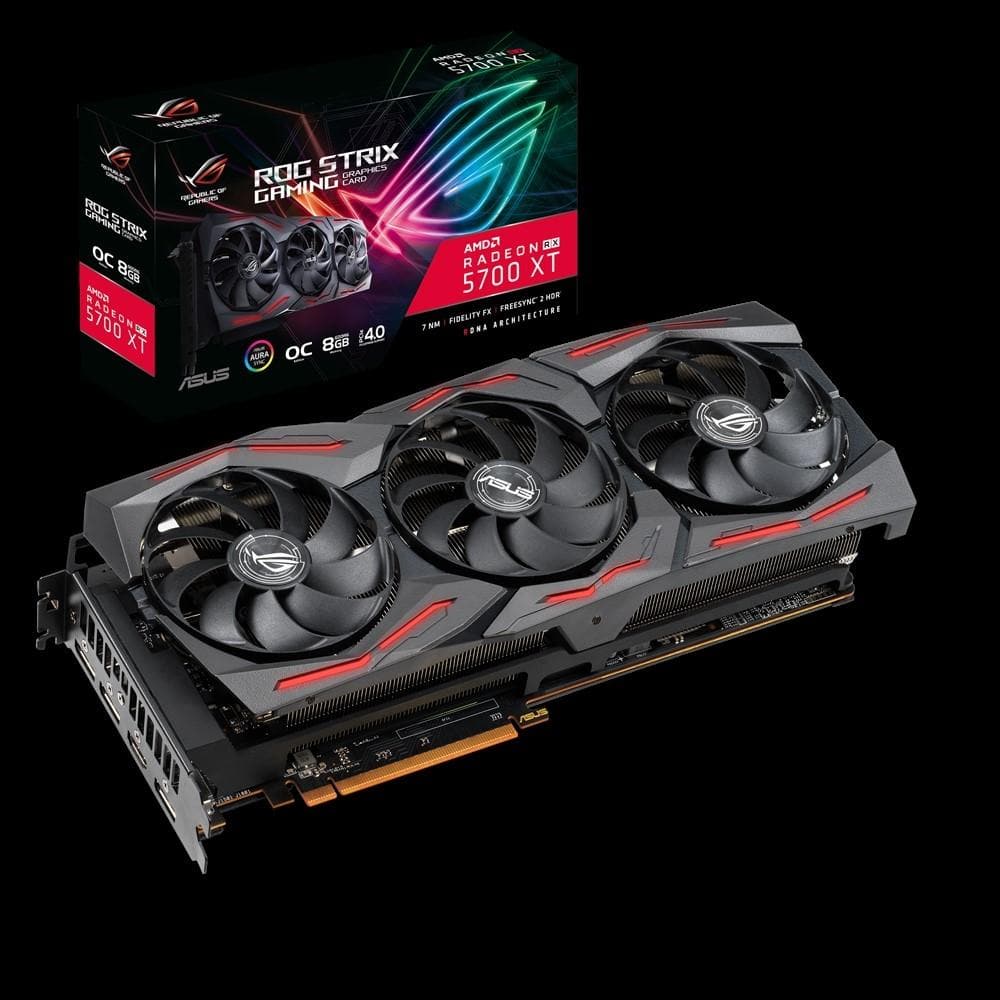

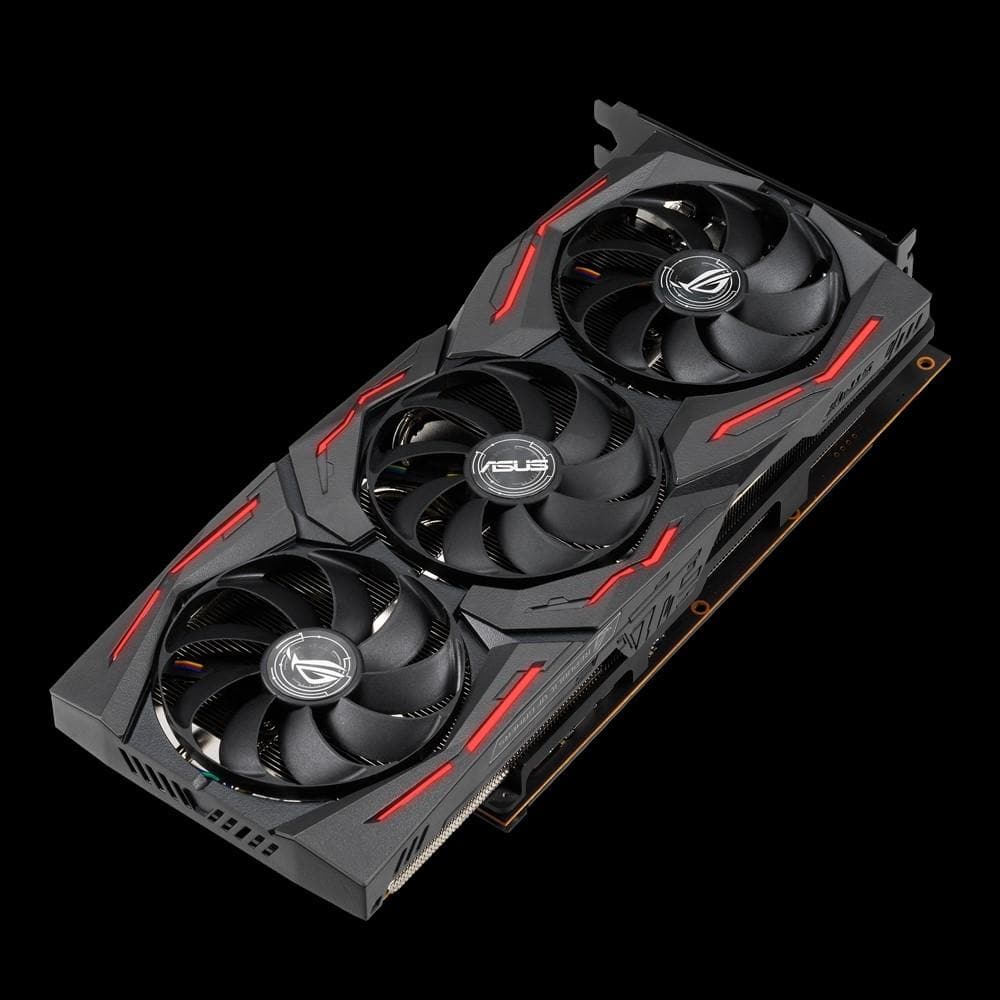

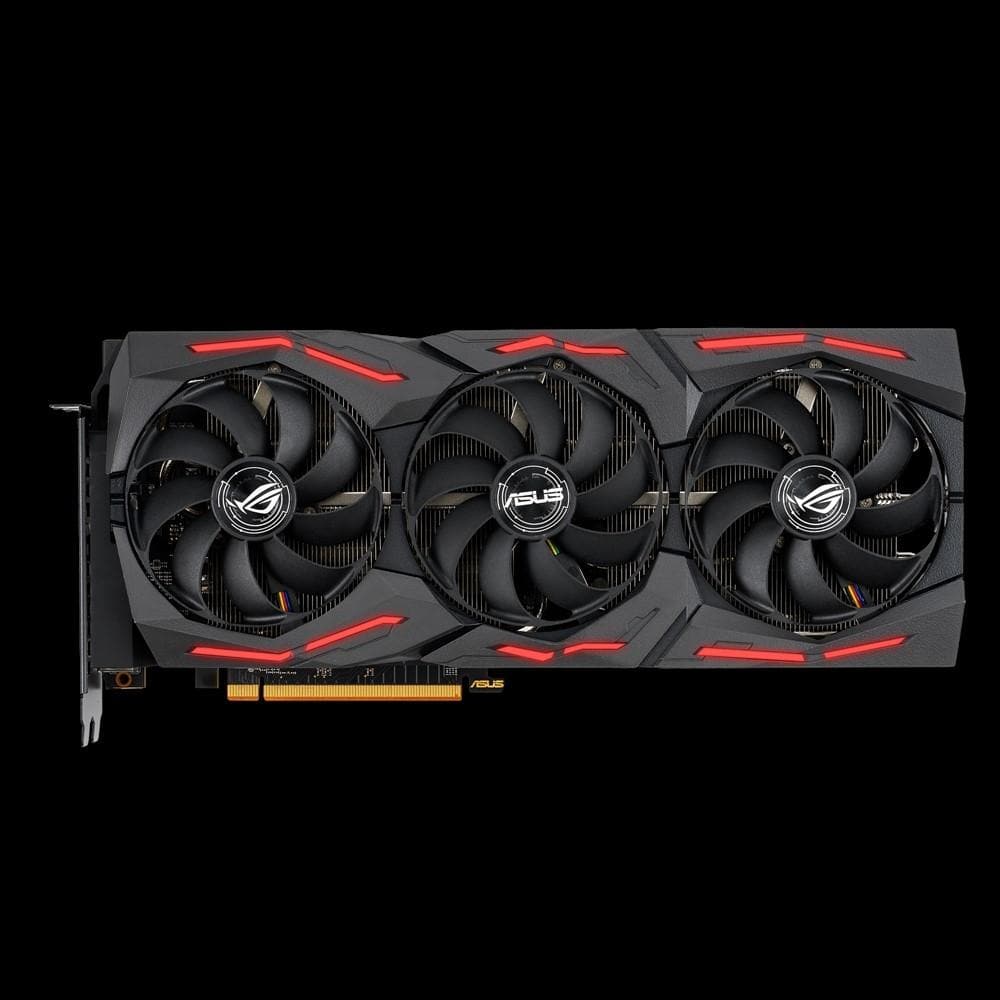

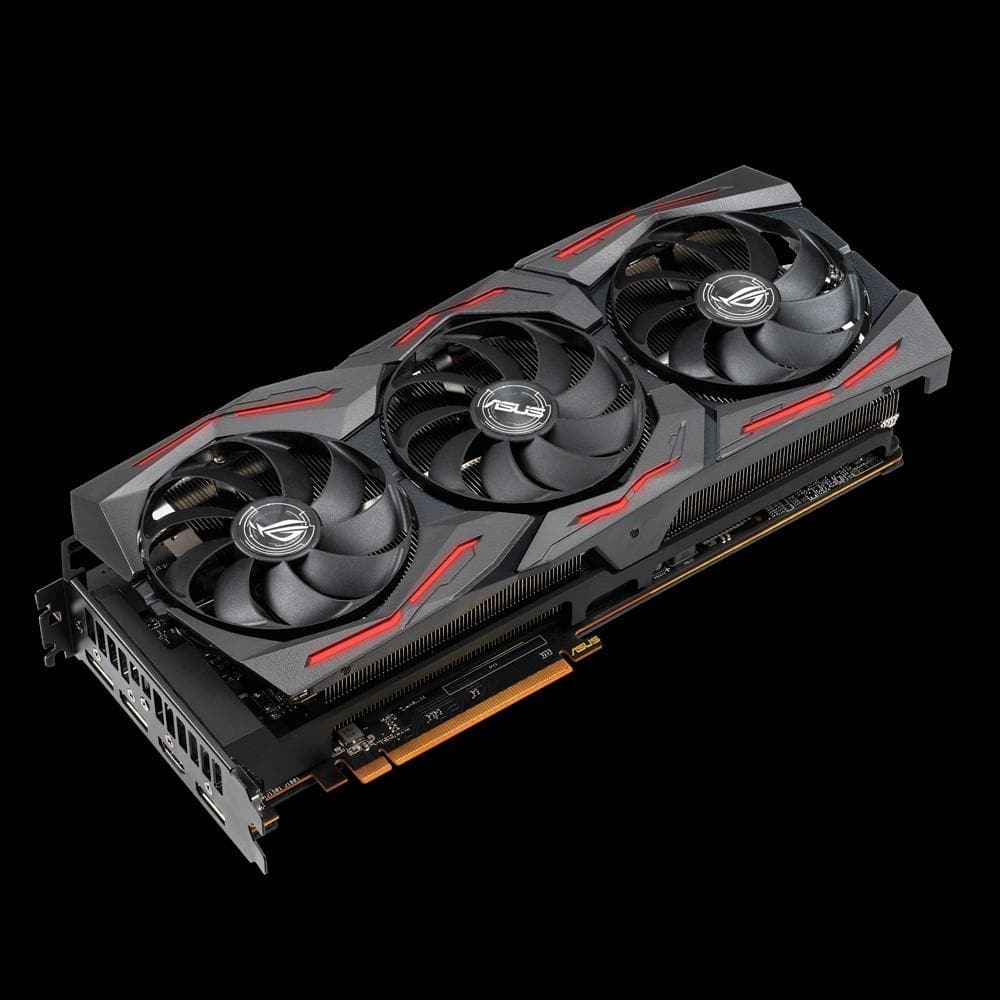

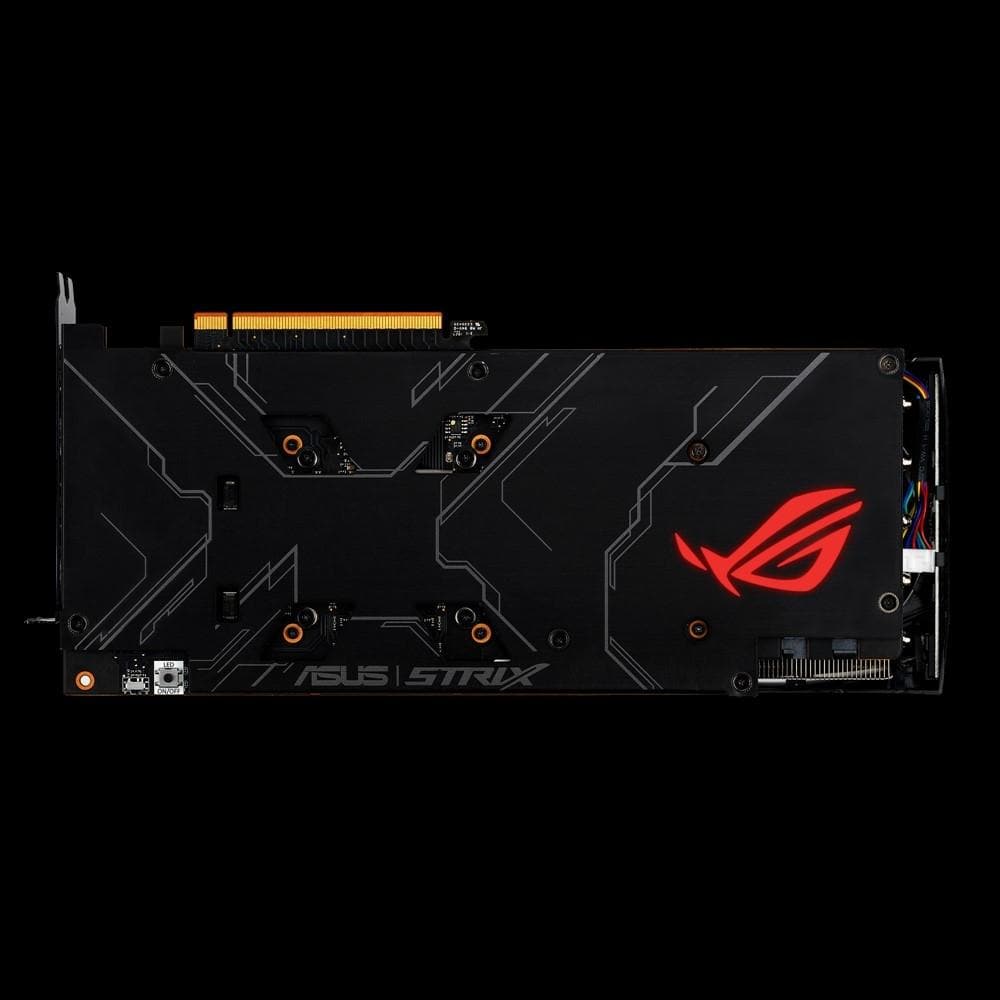

The ROG Strix Radeon RX 5700 XT OC edition 8GB GDDR6 dominates 1440p gaming.
-
Graphics Engine
AMD Radeon RX 5700 XT
-
Bus Standard
PCI Express 4.0
-
OpenGL
OpenGL4.6
-
Video Memory
GDDR6 8GB
-
Engine Clock OC Mode
P Mode : 1840 MHz (Base clock), Up to 1965 MHz (Game clock), ~ 2035 MHz (Boost clock)
-
Engine Clock Gaming Mode
P Mode : 1770 MHz (Base clock), Up to 1905 MHz (Game clock), ~ 2010 MHz (Boost clock)
-
Stream Processors
2560
-
Memory Clock
14 Gbps
-
Memory Interface
256-bit
-
Resolution
Digital Max Resolution:7680x4320
-

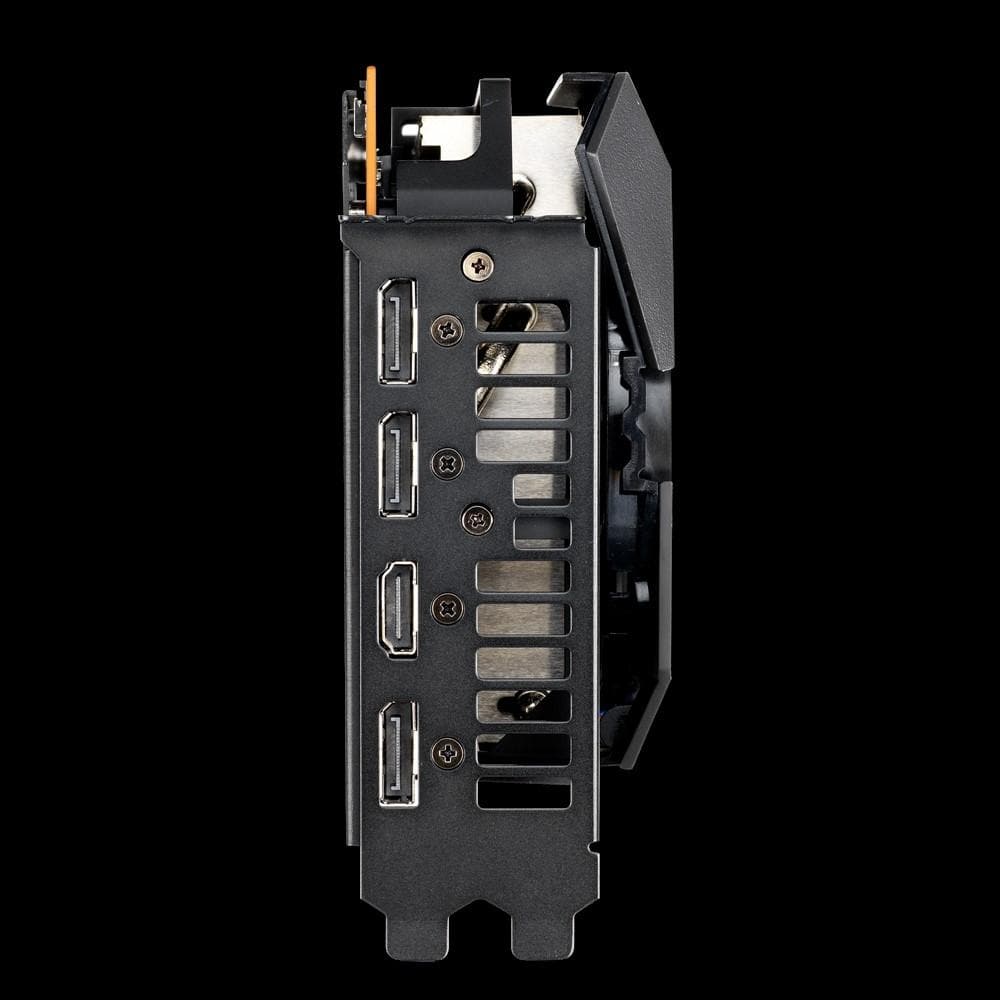

Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (Native) (DisplayPort 1.4)
HDCP Support : Yes (2.3) -
Maximum Display Support
6
-
NVlink/ Crossfire Support
Yes
-
Recommended PSU
600W
-
Power Connectors
2 x 8-pin
-
Accessories
1 x Quick Guide
1 x ROG Velcro Hook & Loop -
Software
ASUS GPU Tweak II & Driver
-
Dimensions
12 " x 5.1 " x 2.1 " Inch
30.5 x 13 x 5.4 Centimeter -
Slot
2.7 slot
-
Note
* Game Frequency is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
* Crossfiresupports DX12 andVulkan only
