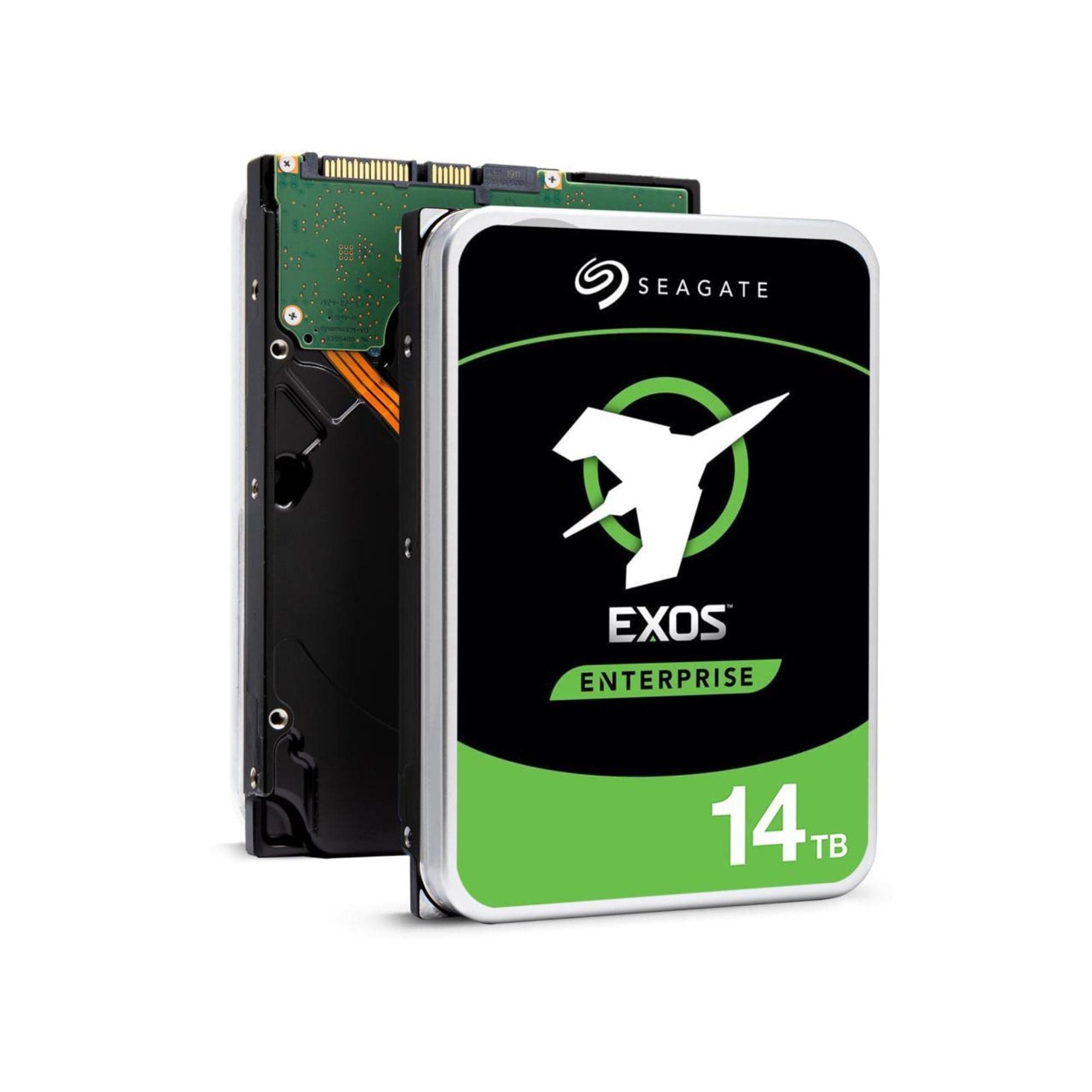

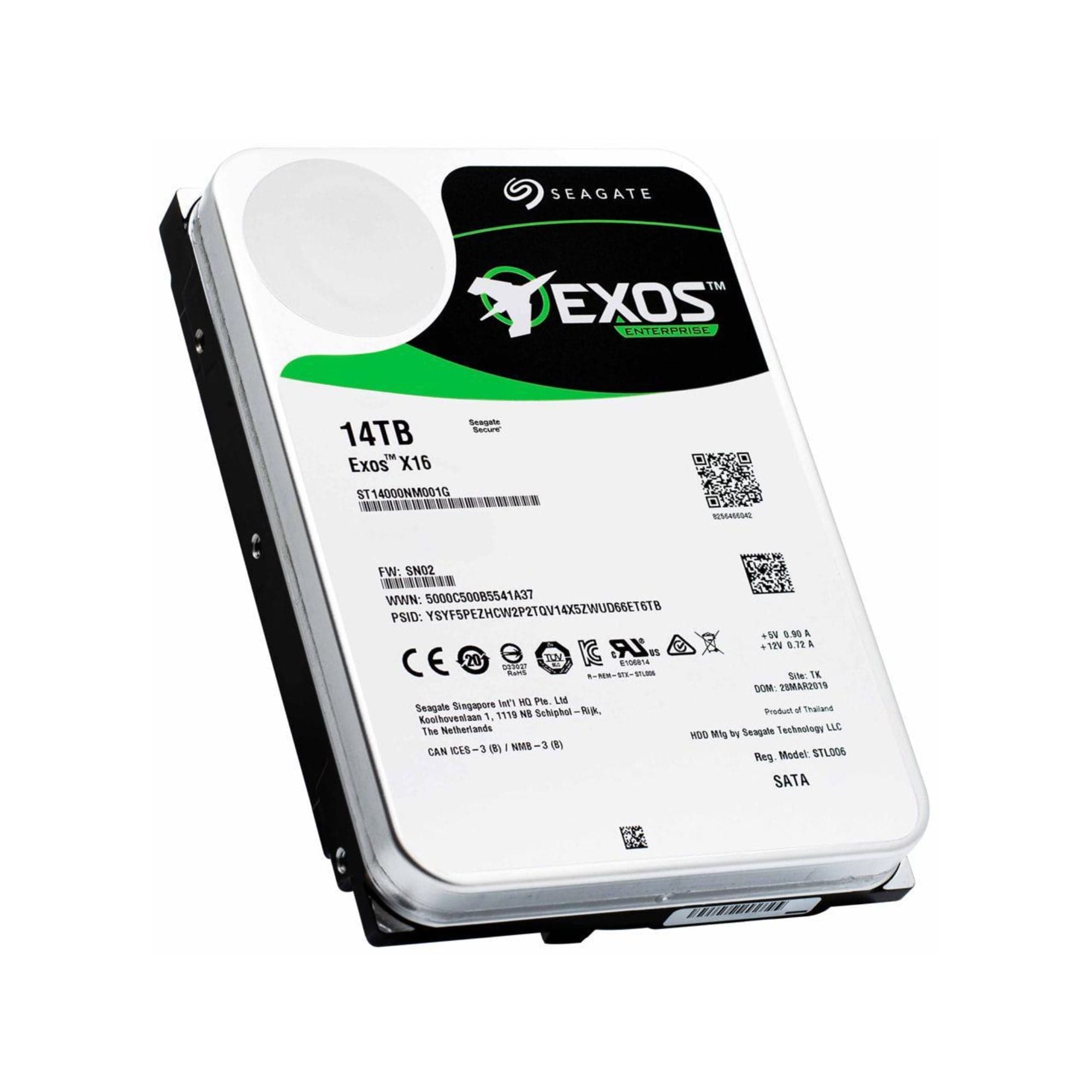

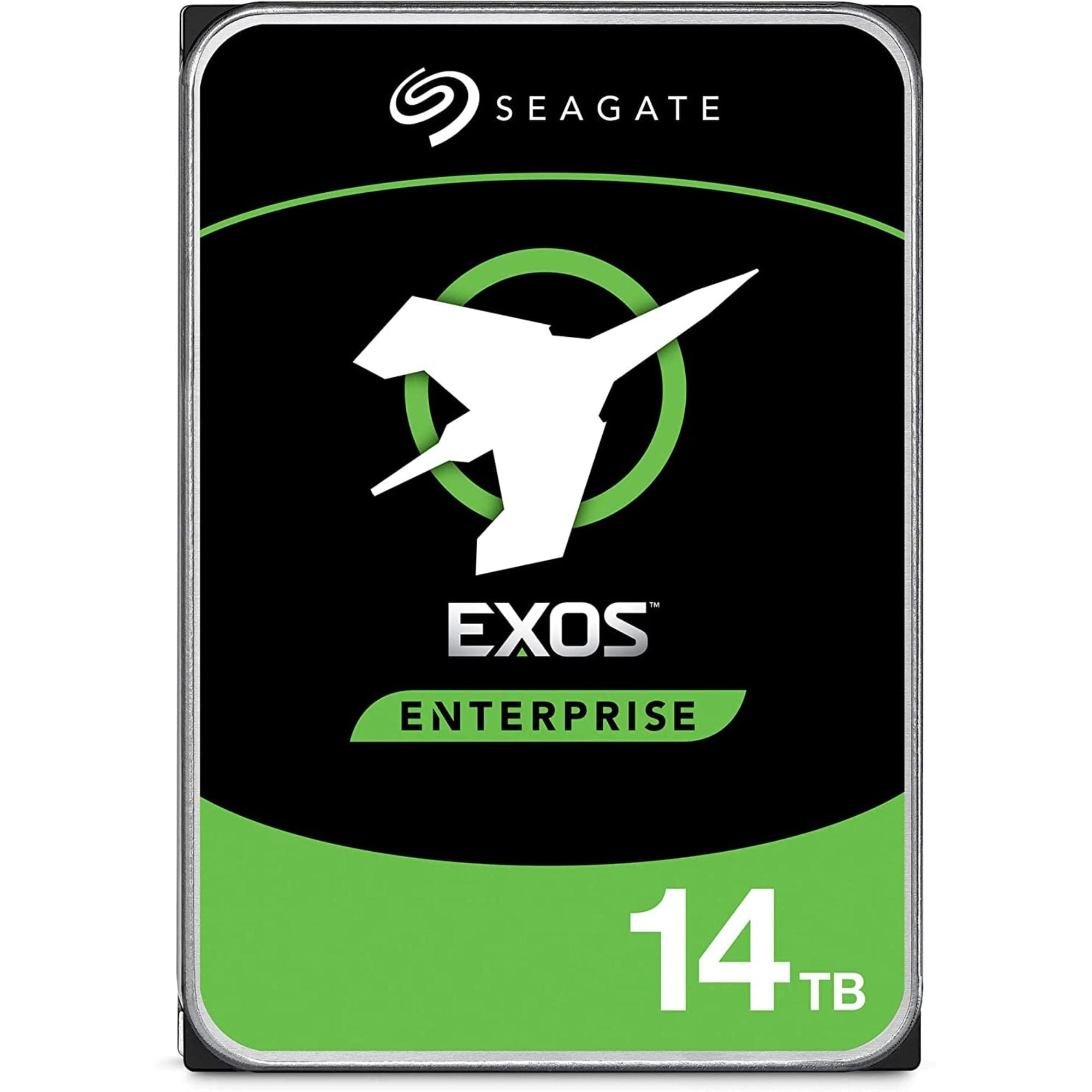

The 14TB Exos X16 7200 rpm SATA III 3.5" Internal HDD from Seagate is a high-performance, large capacity drive designed for data storage. It's suitable for engineering workstations, network servers, mainframes, supercomputers, and other demanding tasks that require 24/7 operation. This 7200 rpm drive utilizes the SATA III 6 Gb/s interface for data transfer rates of up to 261 MB/s. Moreover, as a professional-grade drive, it has an MTBF rating of 2.5 million hours as well as built-in digital sensors to ensure optimal performance.
| Write Speed |
Random: 440 IOPS 4 KB Files |
| Read Speed |
Maximum: 261 MB/s
Random: 170 IOPS 4 KB Files
Sequential: 249 MB/s |
| Latency |
4.1 ms |
| Drive Type |
HDD |
| Form Factor |
3.5" |
| Noise Level |
3.2 dB (Active)
2.8 dB (Idle) |
| Spindle Speed (RPM) |
7200 RPM |
| Heads |
16 |
| Platters |
9 |
| Areal Density |
1028 Gb/in² |
| Disk Sector Format |
512e |
| Annualized Failure Rate (AFR) |
0.35 % |
| Endurance (Total Bytes Written) |
550 TB |
| Load/Unload Cycles |
600,000 |
| Mean Time Between Failures (MTBF) |
2.5 Million Hours |
| Non-Recoverable Read Errors per Bits Read |
1 in 1015 |
| Power Draw |
5.0 W (Idle)
10.00 W (Active)
6.3 W (Active) |
| Supported Voltage |
5 VDC, 12 VDC |
| Current |
2.6 A at 12 VDC |
| Operating Shock |
50 G / 2.0 ms |
| Storage Shock |
200 G / 2.0 ms |
| Operating Vibration |
0.7 G / 5 to 500 Hz |
| Storage Vibration |
2.27 G / 2 to 500 Hz |
| Operating Temperature |
41 to 140°F / 5 to 60°C |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Operating Humidity |
5 to 95% |
| Storage Humidity |
5 to 95% |
| Operating Altitude |
-1,000 to 10,000' / -304.8 to 3048 m |
| Storage Altitude |
-1,000 to 40,000' / -304.8 to 12,192 m |
| Dimensions (W x H x D) |
4.01 x 1.03 x 5.79" / 101.85 x 26.11 x 147 mm |
| Weight |
1.48 lb / 0.67 kg |
| Package Weight |
1.75 lb |
| Box Dimensions (LxWxH) |
9 x 6 x 3" |
