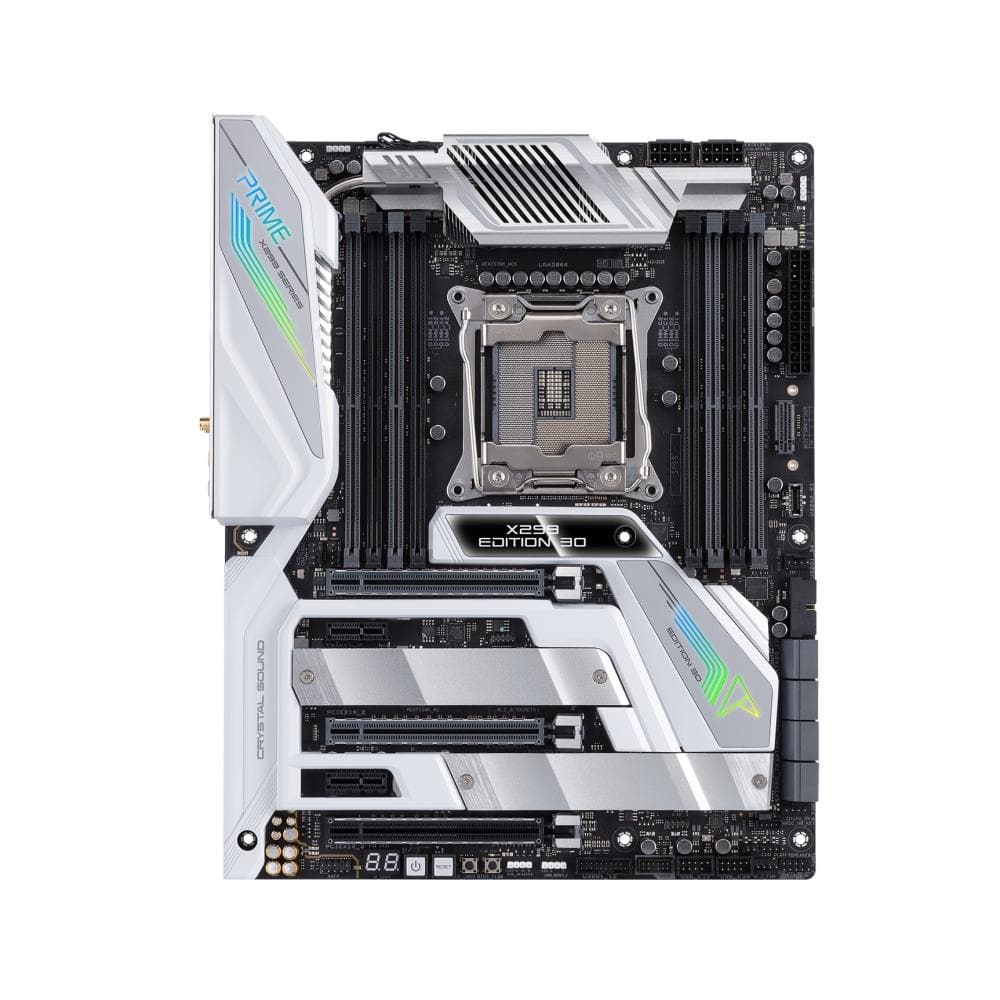

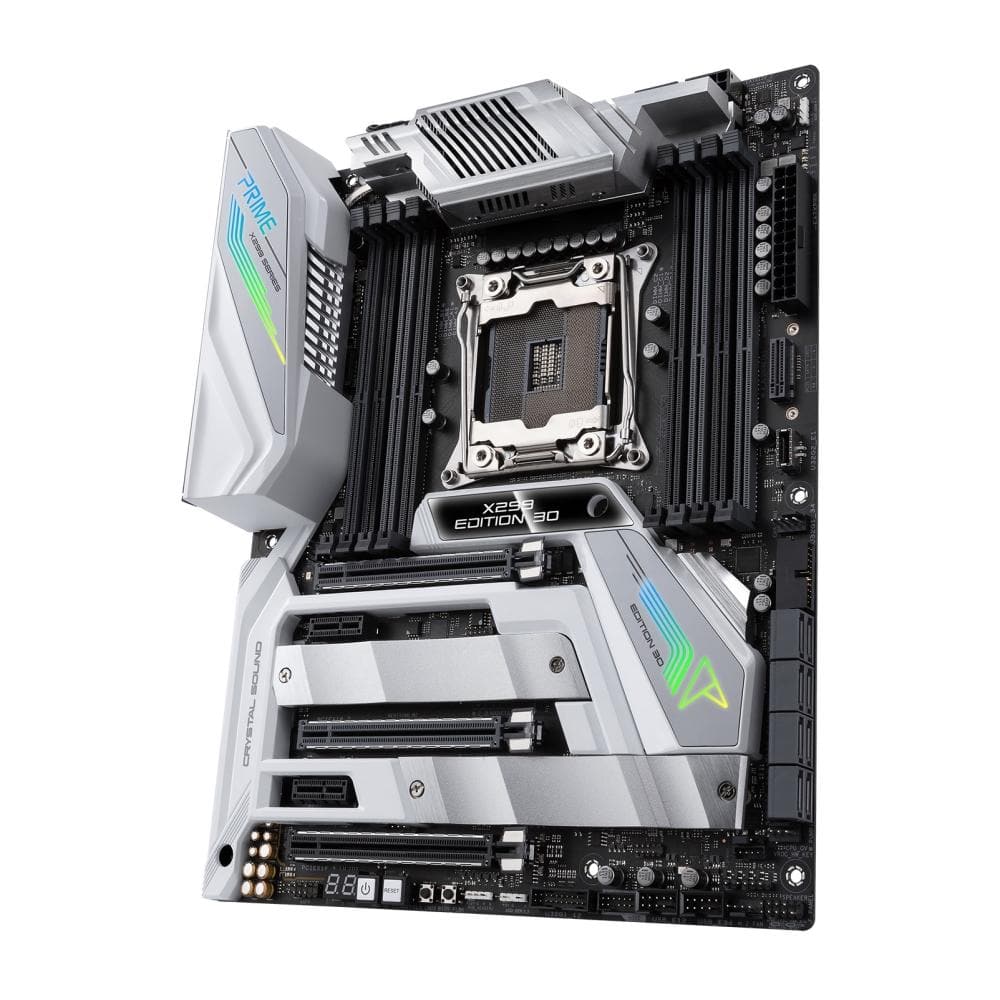

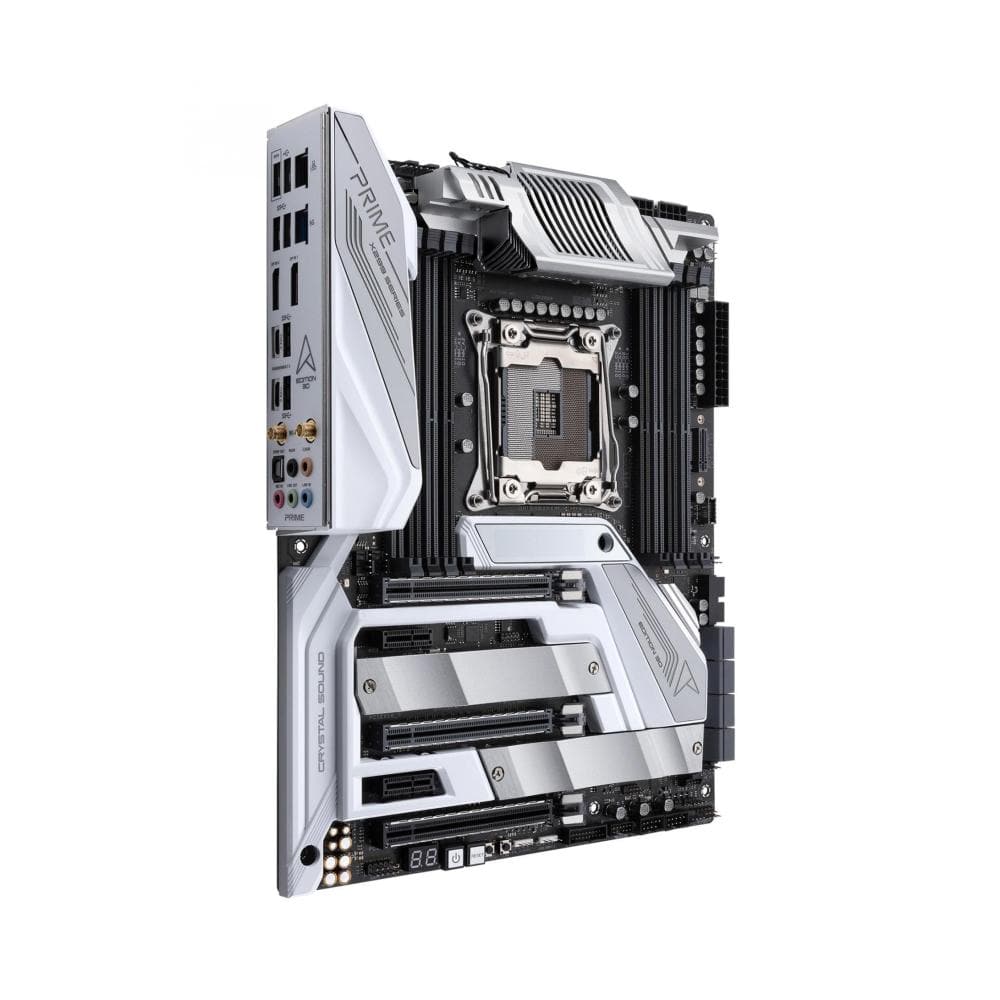

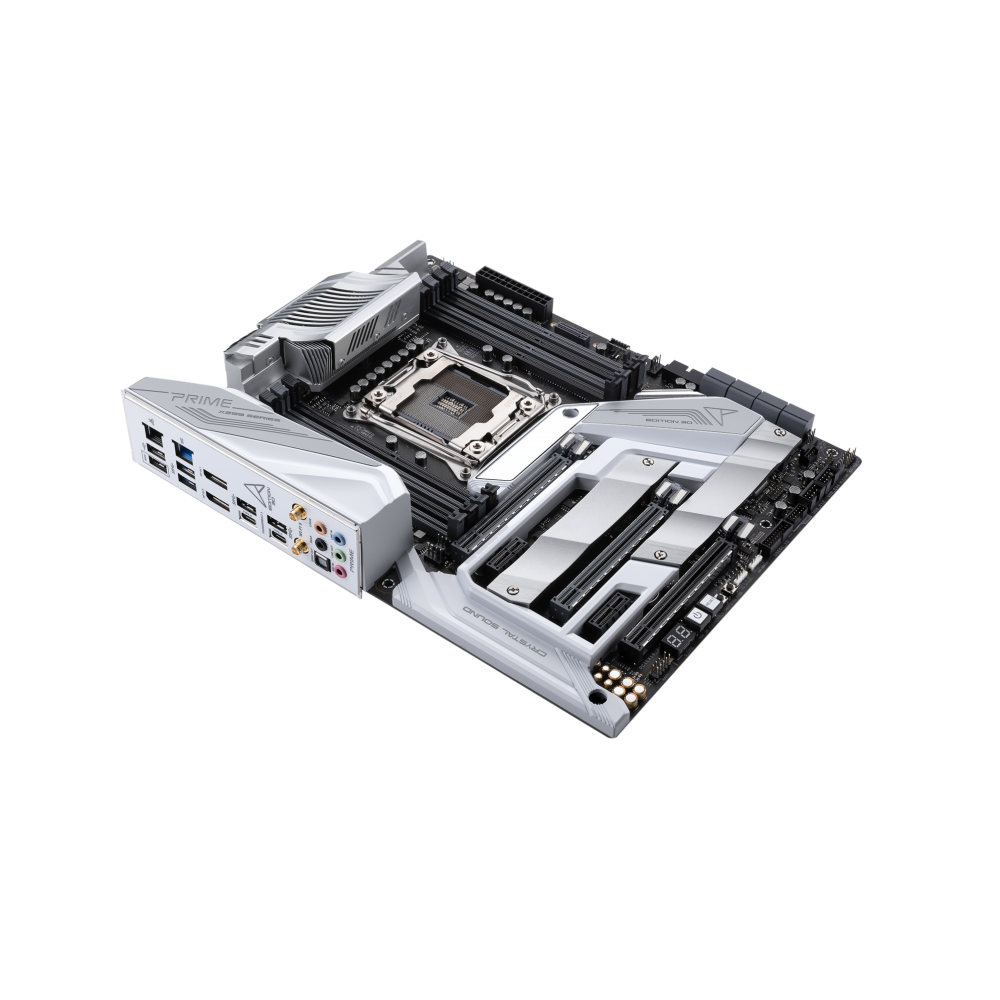

Intel ATX motherboard LGA 2066 for Intel Core X-series processors with AI Overclocking, 16 IR3555 power stages, DDR4 4266 MHz, Wi-Fi 6, 5 Gbps Ethernet, Type-C Thunderbolt 3 ports, Triple M.2, USB 3.2 front panel connector and Aura Sync RGB lighting

• CPU
  Intel Socket 2066 Core X-Series Processors
  Optimized for Intel Core X-Series 10000 Processor Family
  * The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel X299
• Memory
  (Intel Core i9 10000 X-Series CPU)
  8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  (Intel Core i9 9000/7000 and i7 9000 X-Series CPU)
  8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer towww.asus.comfor the Memory QVL (Qualified Vendors Lists).
• Thunderbolt
  2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs
  Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
  * VGA resolution support depends on VGA cards' resolution.
  Data transfer rate up to 40 Gbps
  Daisy-chain up to 12 Thunderbolt devices
  Up to 5V/3A, 15W charging support
• Multi-GPU Support
  Supports NVIDIA Quad-GPU SLI Technology
  Supports NVIDIA 3-Way SLI Technology
  Supports NVIDIA 2-Way SLI Technology
  Supports AMD Quad-GPU CrossFireX Technology
  Supports AMD 3-Way CrossFireX Technology
• Expansion Slots
  48-Lane CPU-
  3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
  2 x PCIe 3.0/2.0 x1 *¹
  44-Lane CPU-
  3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
  2 x PCIe 3.0/2.0 x1 *¹
  28-Lane CPU-
  2 x PCIe 3.0/2.0 x16 (x16, x16/x8) *²
  2 x PCIe 3.0/2.0 x1 *¹
• Storage
  Intel X299 Chipset :
  1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*³
  1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*⁴
  8 x SATA 6Gb/s port(s)*⁵
  Support Raid 0, 1, 5, 10
  Intel Rapid Storage Technology supports
  (Intel Core i9 10000 X-Series CPU) :
  2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*⁴
  Support Raid 0, 1, 5, 10
  Intel Virtual RAID on CPU(VROC)
  (Intel Core i9 9000/7000 and i7 9000 X-Series CPU) :
  1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*⁴
  Support Raid 0, 1, 5, 10
  Intel Virtual RAID on CPU(VROC)
  Intel Optane Memory Ready *⁶
• LAN
  Aquantia AQC111C 5G LAN
  Intel I219V, 1 x Gigabit LAN
  ASUS Turbo LAN Utility
  ASUS LAN Guard

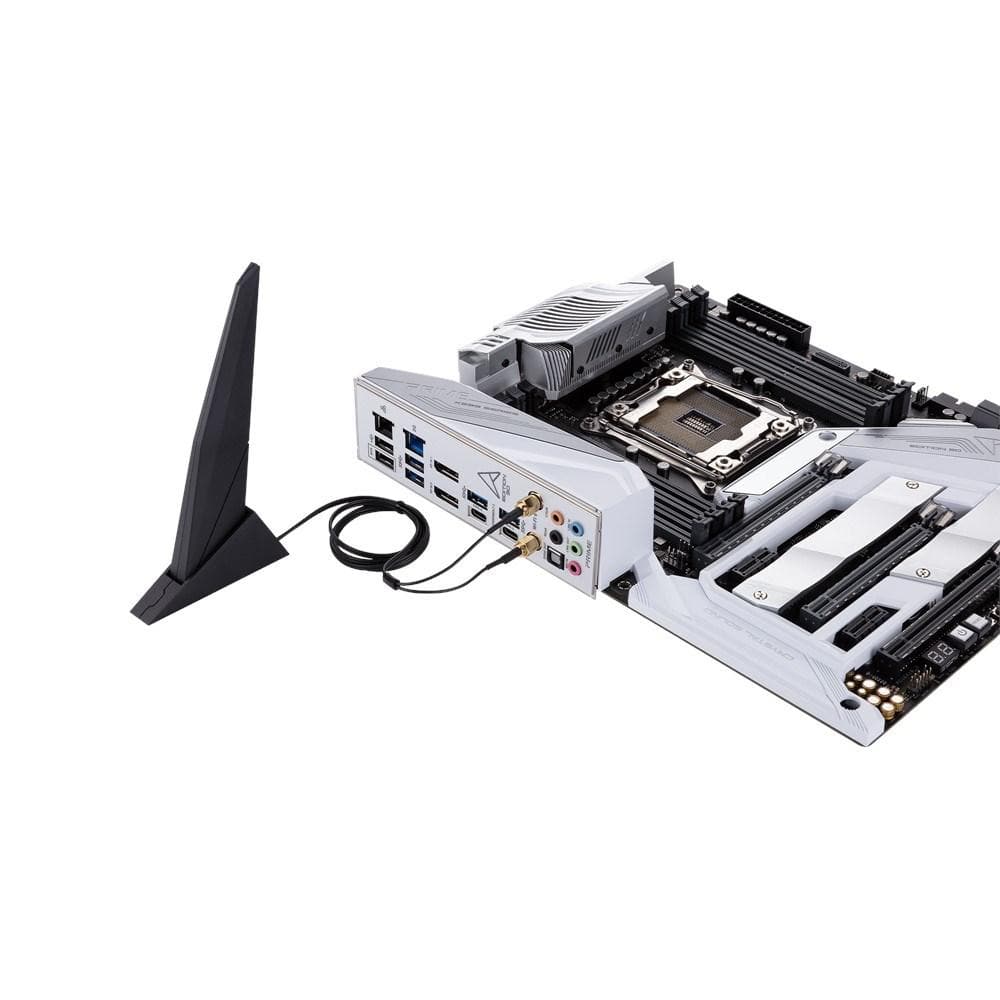

• Wireless Data Network
  Intel Wi-Fi 6 AX200
  Wi-Fi 802.11 ax, Bluetooth 5.0
  Supports channel bandwidth: HT20/HT40/HT80/HT160
  2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)withMU-MIMO supportsdualfrequency band 2.4/5GHz
  Up to 2.4Gbps transfer speed
• Bluetooth
  Bluetooth 5.0
• Audio
  Realtek S1220A 8-Channel High Definition Audio CODEC
  - Power pre-regulator reduces power input noise to ensure consistent performance
  - Impedance sense for front and rear headphone outputs
  - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  Audio Feature :
  - DTS X:Ultra
  - Optical S/PDIF out port(s) at back panel
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
• USB Ports
  Intel Thunderbolt 3 Controller :
  2 x USB 3.2 Gen 2 port(s) (USB Type-C^TM)
  ASMedia USB 3.2 Gen 2 controller :*¹
  1 x USB 3.2 Gen 2 front panel connector port(s)
  GL852G USB Hub :
  4 x USB 2.0 port(s)
  Intel X299 Chipset :
  5 x USB 3.2 Gen 1 port(s) (1 at back panel, , 4 at mid-board)
  Intel X299 Chipset :
  2 x USB 2.0 port(s) (2 at back panel, )
  ASMedia USB 3.2 Gen 1 Hub :
  3 x USB 3.2 Gen 1 port(s) (3 at back panel, )
• Special Features
  OC Design - ASUS PRO Clock II Technology
  5-Way Optimization by Dual Intelligent Processors 5
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
  AI Overclocking
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  2 LiveDash
  AURA :
  - Aura RGB Strip Headers
  - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  - Aura Addressable Strip Header(s)
  ASUS Exclusive Features:
  - USB BIOS FlashBack
  - AI Suite 3
  - Ai Charger
  - Onboard Button : Power
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Turbo LAN
  - Armoury Crate
  - Pre-mounted I/O Shield
  - ASUS NODE: hardware control interface
  - BIOS FlashBackButton
  - Clear CMOS Button
  ASUS Quiet Thermal Solution:
  - Stylish Design Heat-pipe solution
  - ASUS Fan Xpert 4
  ASUS Q-Design :
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Intel Virtual RAID on CPU (VROC) ready
  DIY Friendly Design
  - ProCool II
  - SafeSlot

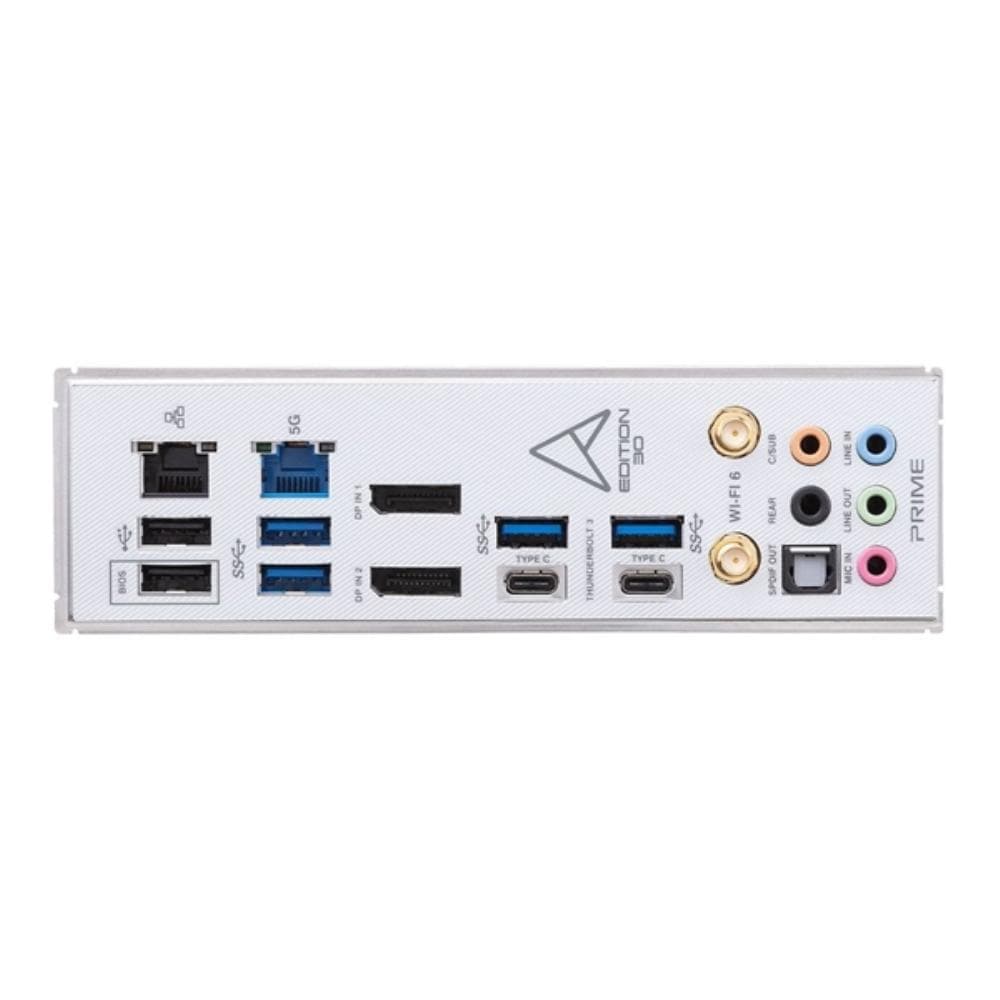

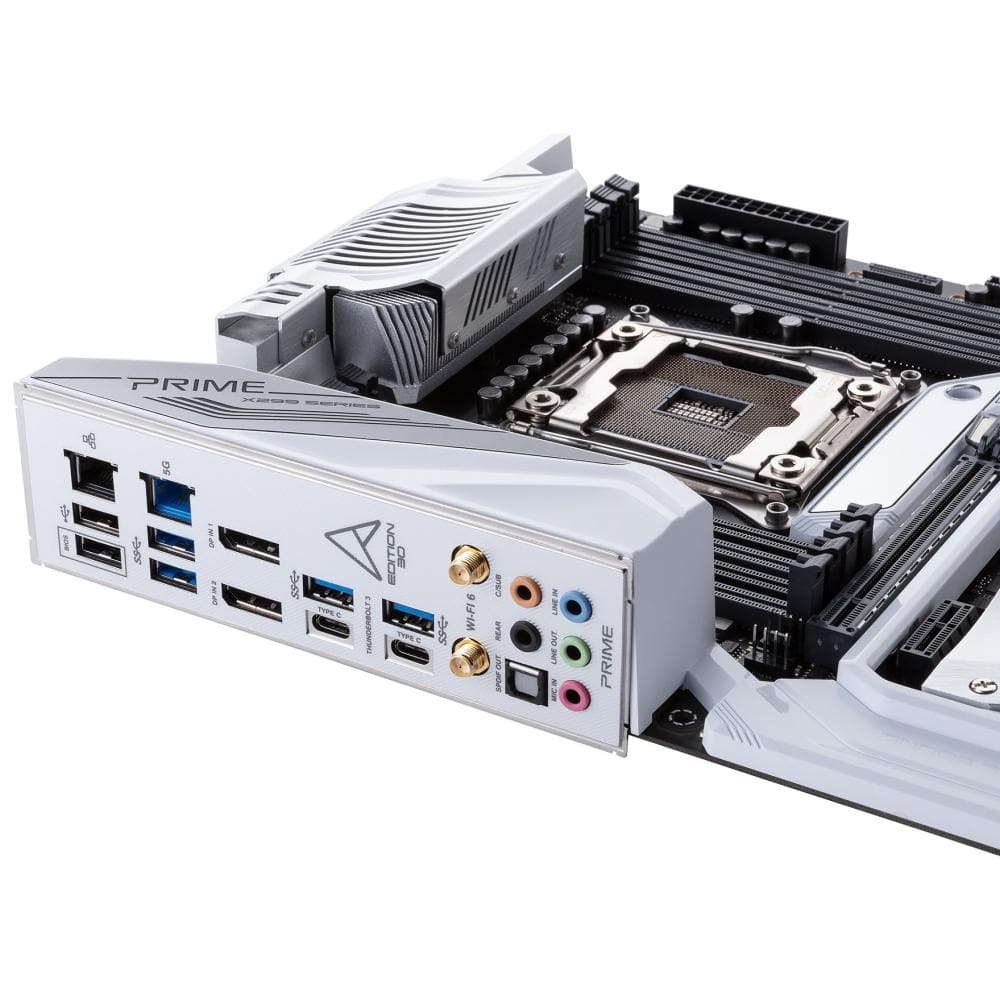

• Back I/O Ports
  2 x Thunderbolt 3 ports TypeC
  2 x DisplayPort IN ports for Thunderbolt 3
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1
  2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  1 x ASUS Wi-Fi Module
  1 x AQC-111C 5G LAN port
• Internal I/O Ports
  2 x Aura Addressable Strip Header(s)
  1 x AAFP connector
  2 x Aura RGB Strip Header
  2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  8 x SATA 6Gb/s connector(s)
  1 x M.2_FAN connector
  1 x VROC_HW_Key
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x W_PUMP+ connector
  1 x AIO_PUMP connector
  1 x 24-pin EATX Power connector(s)
  2 x 8-pin EATX 12V Power connectors
  1 x System panel(s) (Q-Connector)
  1 x Thermal sensor connector(s)
  1 x CPU OV
  1 x Power-on button(s)
  1 x Clear CMOS button(s)
  1 x Node Connector(s)
  1 x USB BIOS FlashBackbutton(s)
  1 x USB 3.2 Gen 2 front panel connector
  1 x Q-Code
  1 x FlexKey button
• Accessories
  User's manual
  1 x Vertical M.2 bracket set
  6 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
  1 x Fan Extension Card II power cable
  1 x Fan Extension Card II NODE connector cable
  1 x Fan Extension Card II screw package
  1 x DisplayPort cable
  1 x Q-Connector
  1 x Wi-Fi Antenna(s)
  1 x Extension Cable for RGB strips (80 cm)
  1 x Extension cable for Addressable LED
  3 x Thermistor cable(s)
  Smart Control Console
  1 x Smart Control Console
  2 x micro USB 2.0 cables for Smart Console Console
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)

• Operating System
  Windows 10 64-bit
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
