Intel Z390 mATX gaming motherboard with 802.11ac Wi-Fi, double-capacity DIMM support, ROG DIMM.2 dual M.2 expansion card, Aura Sync RGB LED, DDR4 4800MHz, four M.2, SATA 6Gbps, HDMI and USB 3.1 Gen 2

• CPU
  Build in Intel 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
  Supports Intel Turbo Boost Technology 2.0
  * Refer to www.asus.com for CPU support list
• Chipset
  Build in Intel Z390
• Memory
  Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors
  2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Double Capcity DRAM support depends on the DRAM models
• Graphic
  Integrated Graphics Processor- Intel UHD Graphics support
  - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz

• Expansion Slots
  Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors
  1 x PCIe 3.0 x16
  Intel Z390 Chipset
  1 x PCIe 3.0 x4
• Storage
  Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors :
  2 x ROG DIMM.2 Module supports 2 M.2 Socket 3 *, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  Intel Z390 Chipset :
  2 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
  Intel Z390 Chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 5, 10
  Intel Optane Memory Ready
• LAN
  Intel I219V, 1 x Gigabit LAN Controller(s)
  Anti-surge LANGuard
  ROG GameFirst Technology
• Wireless Data Network
  Intel Wireless-AC 9560
  Wi-Fi 802.11 a/b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
  Supports MU-MIMO
  Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
• Bluetooth
  Bluetooth 5.0
• Audio
  ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output 113 dB SNR recording input
  Audio Feature :
  - SupremeFX Shielding Technology
  - Gold-plated jacks
  - Optical S/PDIF out port(s) at back panel
  - Sonic Radar III
  - Sonic Studio III + Sonic Studio Link
• USB Ports
  Intel Z390 Chipset :
  1 x USB 3.1 Gen 2 front panel connector port(s)
  Intel Z390 Chipset :
  4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x Type-C)
  Intel Z390 Chipset :
  8 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  Intel Z390 Chipset :
  6 x USB 2.0 port(s)
• ROG Exclusive Features
  ROG CPU-Z
  ROG CloneDrive
  Pre-mounted I/O Shield
  Slow Mode
  CMOS button
  Overwolf
  ReTry Button
  Safe Boot Button
  Start Button
  Reset Button
  LN2 Mode
  ROG Aura
  - Aura Lighting Control
  - Aura RGB Strip Headers
  Extreme Engine Digi+ :
  - MicroFine Alloy Chokes
  - 10K Black Metallic Capacitors
  Mem TweakIt
  Double Power :
  - Dual 8 -pin CPU
  USB BIOS Flashback
  ROG Exclusive Software
  - RAMCache III
  - GameFirst V
  - Sonic Studio III + Sonic Studio Link
  - Sonic Radar III
• Special Features
  AI Overclocking
  ASUS 5X Protection III :
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  Gamer's Guardian:
  - SafeSlot
  ASUS Optimem II
  - Optimem (Improved DDR4 stability)
  - Improved DDR4 Stability
  ASUS Exclusive Features :
  - MemOK! II
  - Pre-mounted I/O Shield
  - ASUS NODE : hardware control interface
  - BIOS Flashback Button
  - Clear CMOS Button
  - Reset Button
  ASUS Quiet Thermal Solution :
  - ASUS Fan Xpert 4
  ASUS Q-Design :
  - ASUS Q-Code
  - ASUS Q-LED (CPU, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  AURA: RGB Lighting Control
  Armoury Crate
• Operating System Support
  Windows 10 64-bit

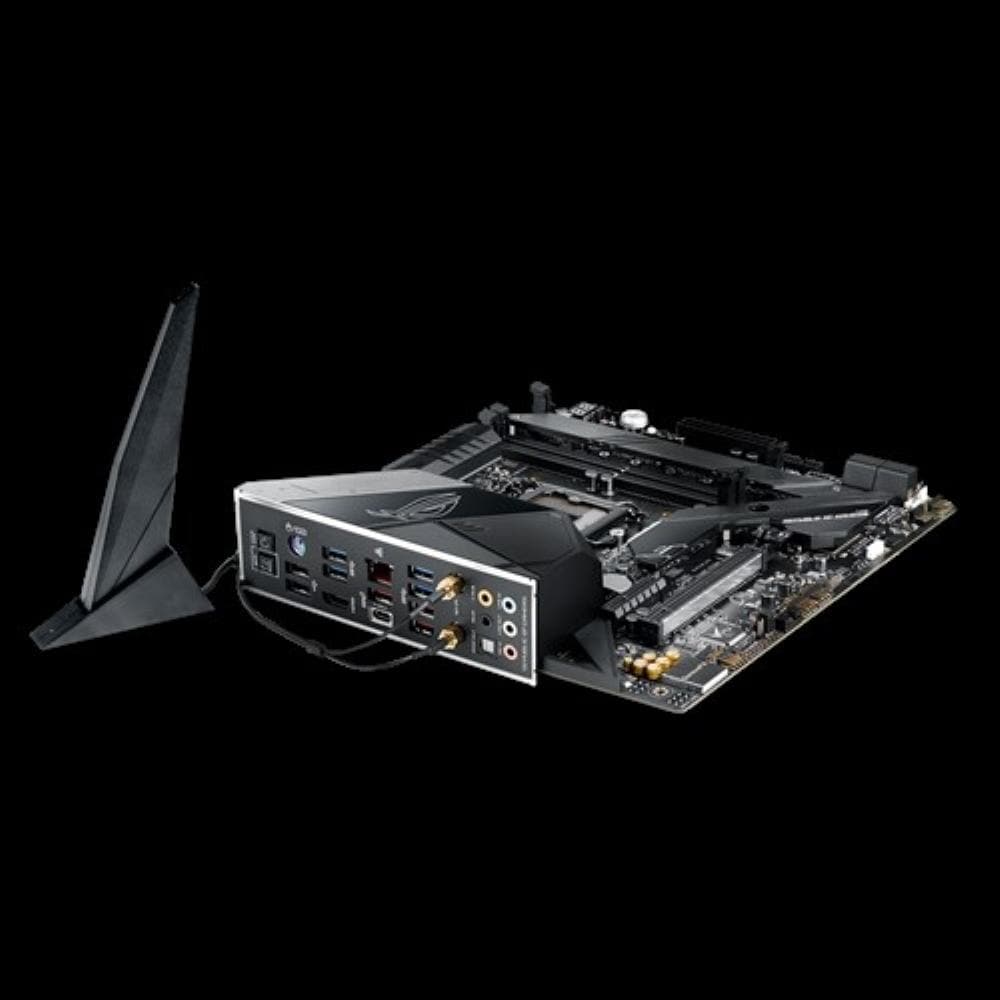

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x HDMI
  1 x LAN (RJ45) port(s)
  3 x USB 3.1 Gen 2 (red)Type-A,
  1 x USB 3.1 Gen 2 (red)Type-C
  6 x USB 3.1 Gen 1 (blue)
  2 x USB 2.0
  1 x Clear CMOS button(s)
  1 x Wi-Fi antenna port(s)
• BIOS
  1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

• Manageability
  WfM2.0, DMI3.0, WOL by PME, PXE

• Support Disc
  Overwolf
  1-year Anti-Virus software
  Daemon Tools Software
  WinRAR

• Form Factor
  mATX Form Factor
  9.6 inch x 8.9 inch ( 24.4 cm x 22.6 cm )
• Note
  * DIMM.2 share the bandwidth with PCIe x16 slot, when DIMM.2 _1 or DIMM.2_2 installed a device , PCIe x16 slot will running at x8 mode
