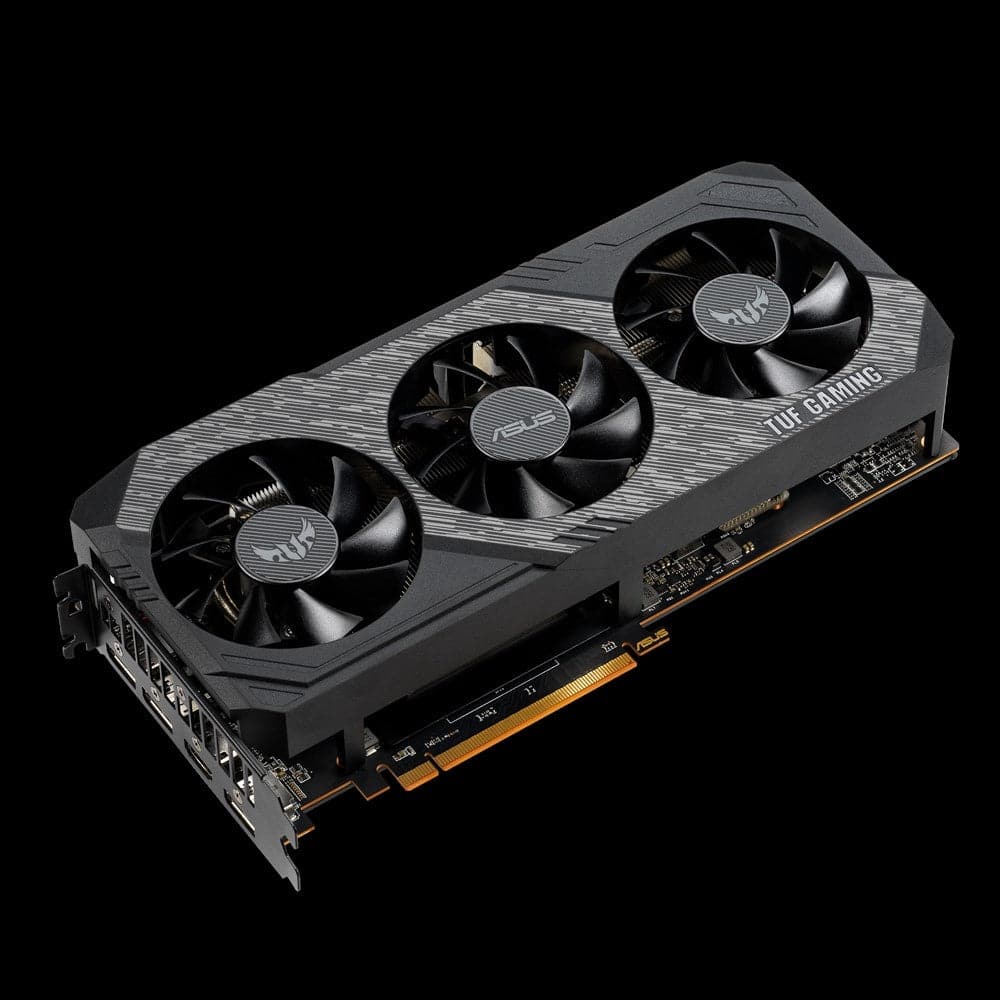

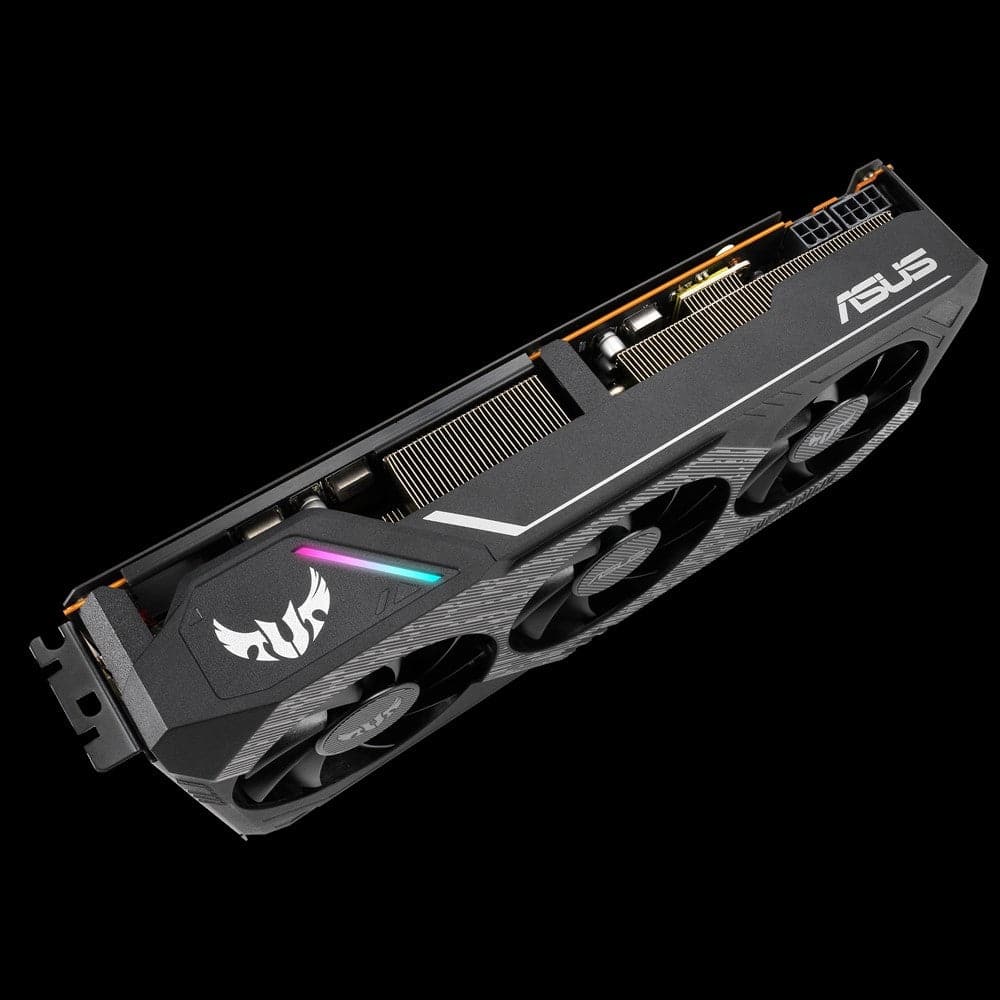

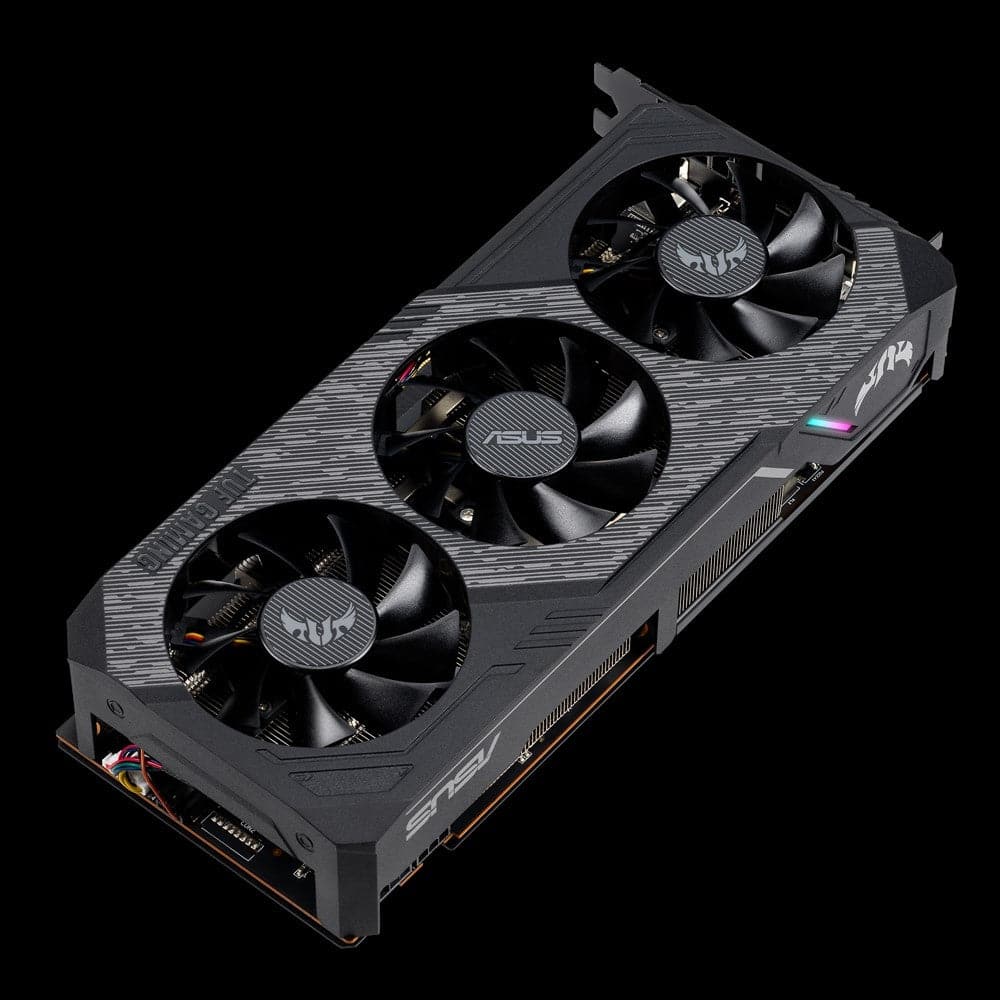

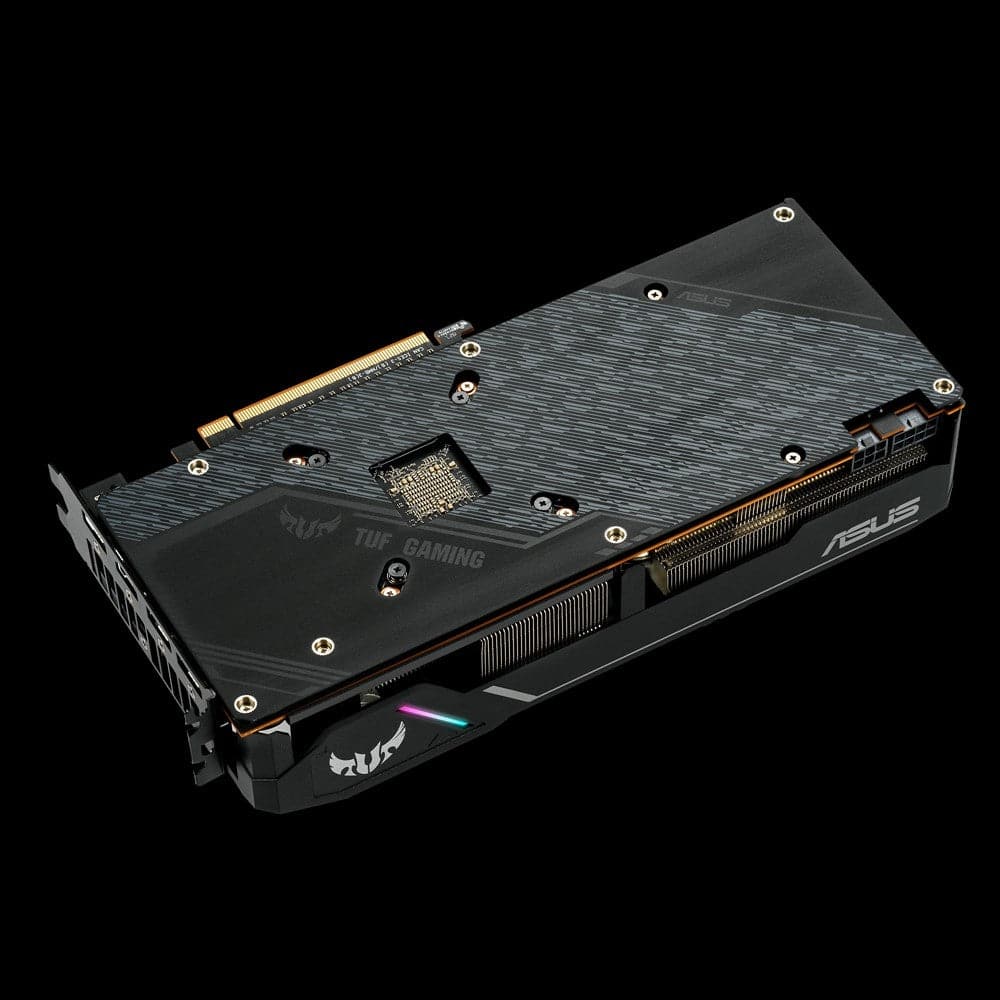

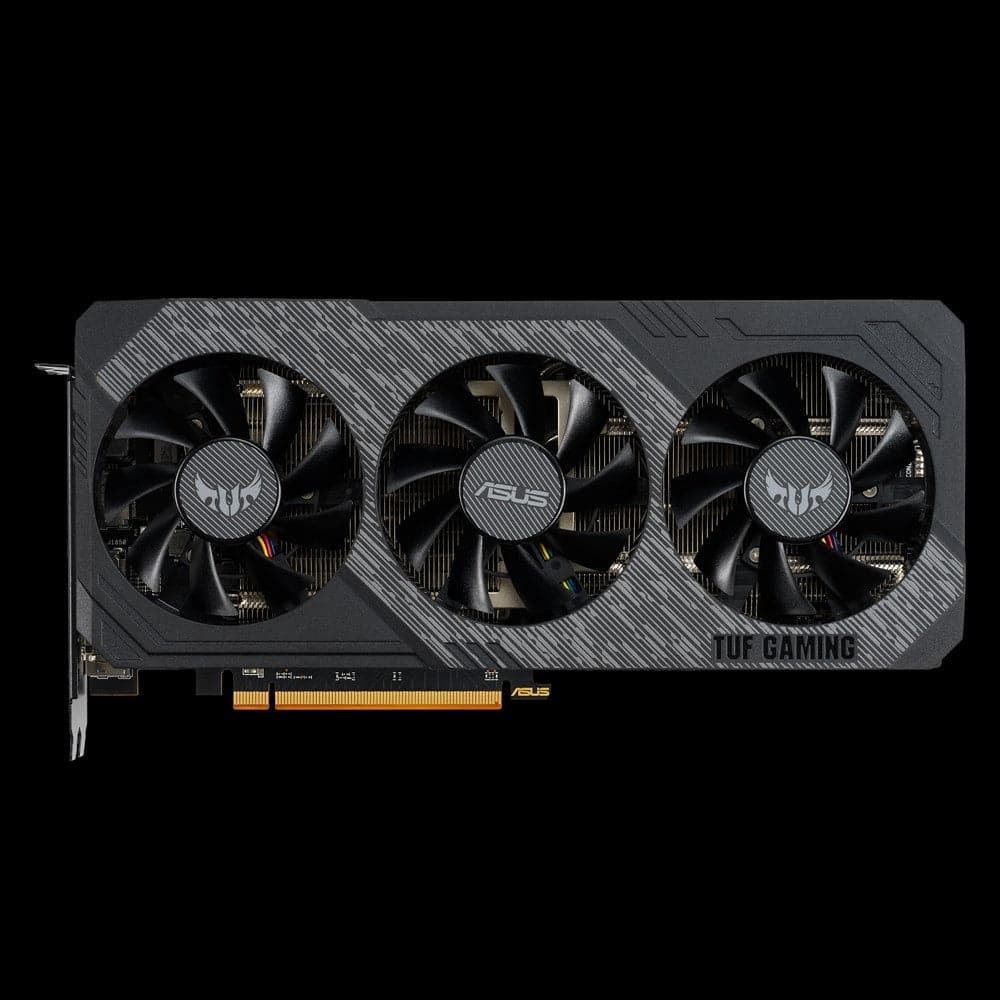

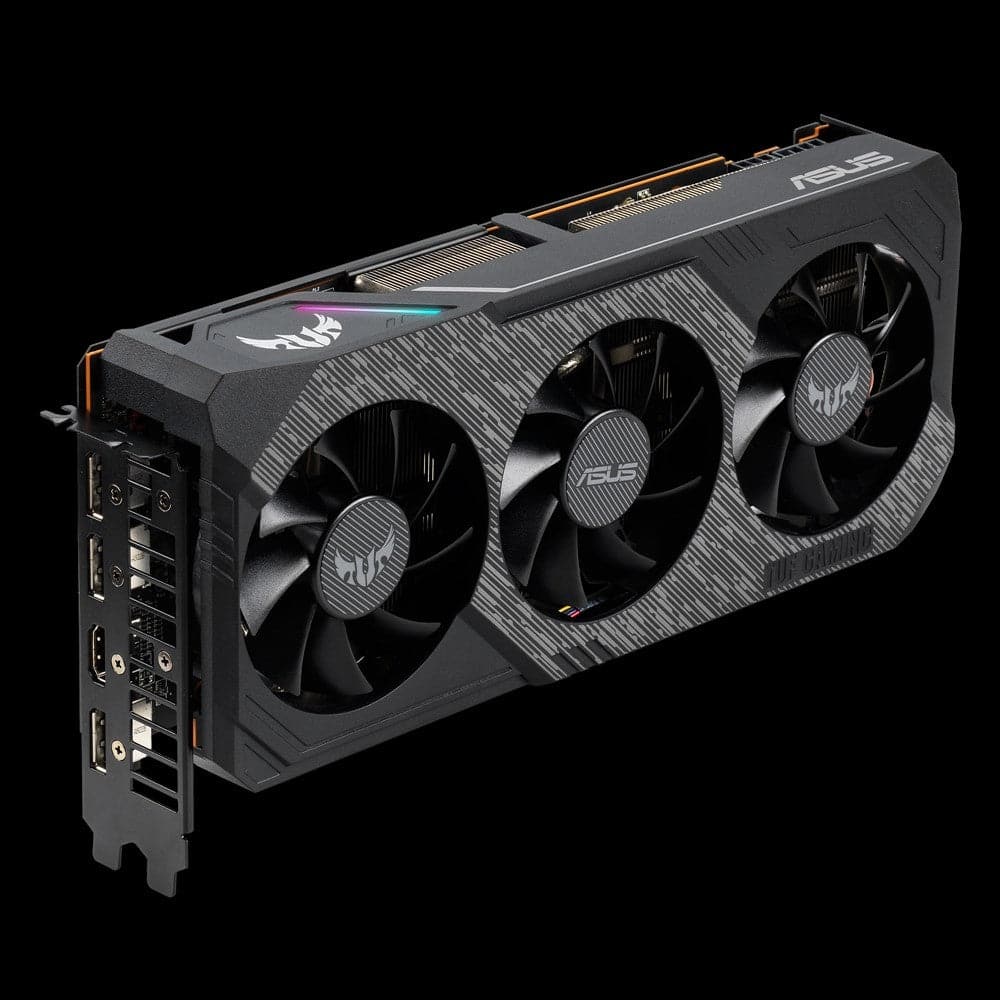

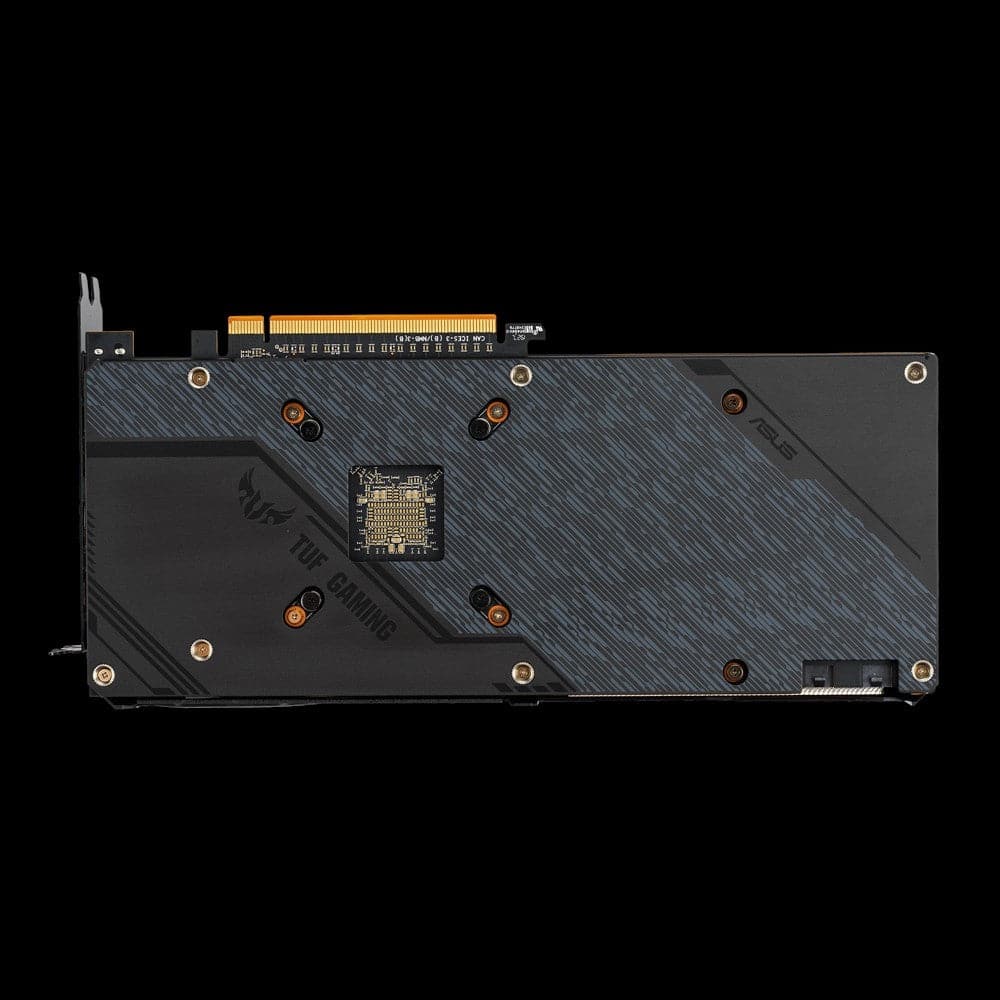

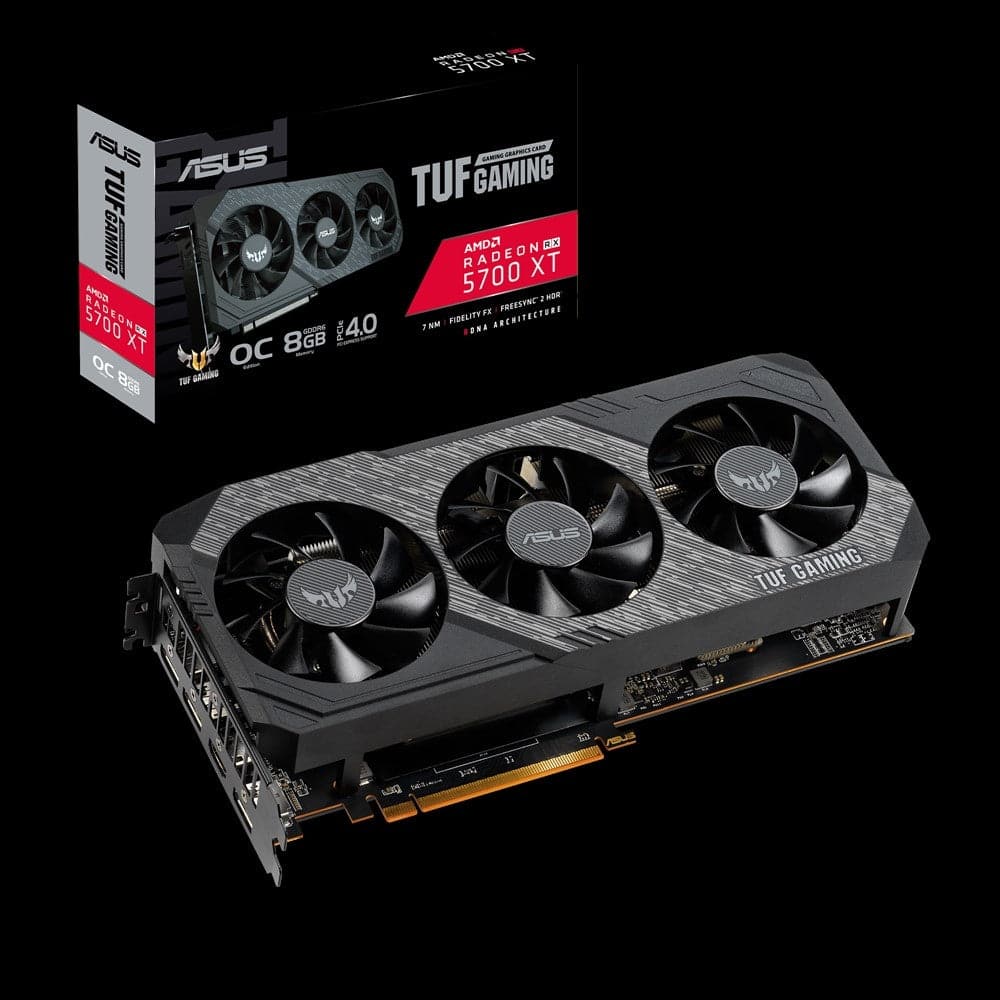

The ASUS TUF Gaming X3 Radeon™ RX 5700 XT OC edition 8GB GDDR6 is built for durability and performance at 1440p.
-
Graphics Engine
AMD Radeon RX 5700 XT
-
Bus Standard
PCI Express 4.0
-
OpenGL
OpenGL®4.6
-
Video Memory
GDDR6 8GB
-
Engine Clock – OC Mode
P Mode : 1730 MHz (Base clock), Up to 1870 MHz (Game clock), ~ 1980 MHz (Boost clock)
-
Engine Clock – Gaming Mode
P Mode : 1650 MHz (Base clock), Up to 1795 MHz (Game clock), ~ 1905 MHz (Boost clock)
-
Stream Processors
2560
-
Memory Clock
14 Gbps
-
Memory Interface
256-bit
-
Resolution
Digital Max Resolution:7680x4320
-

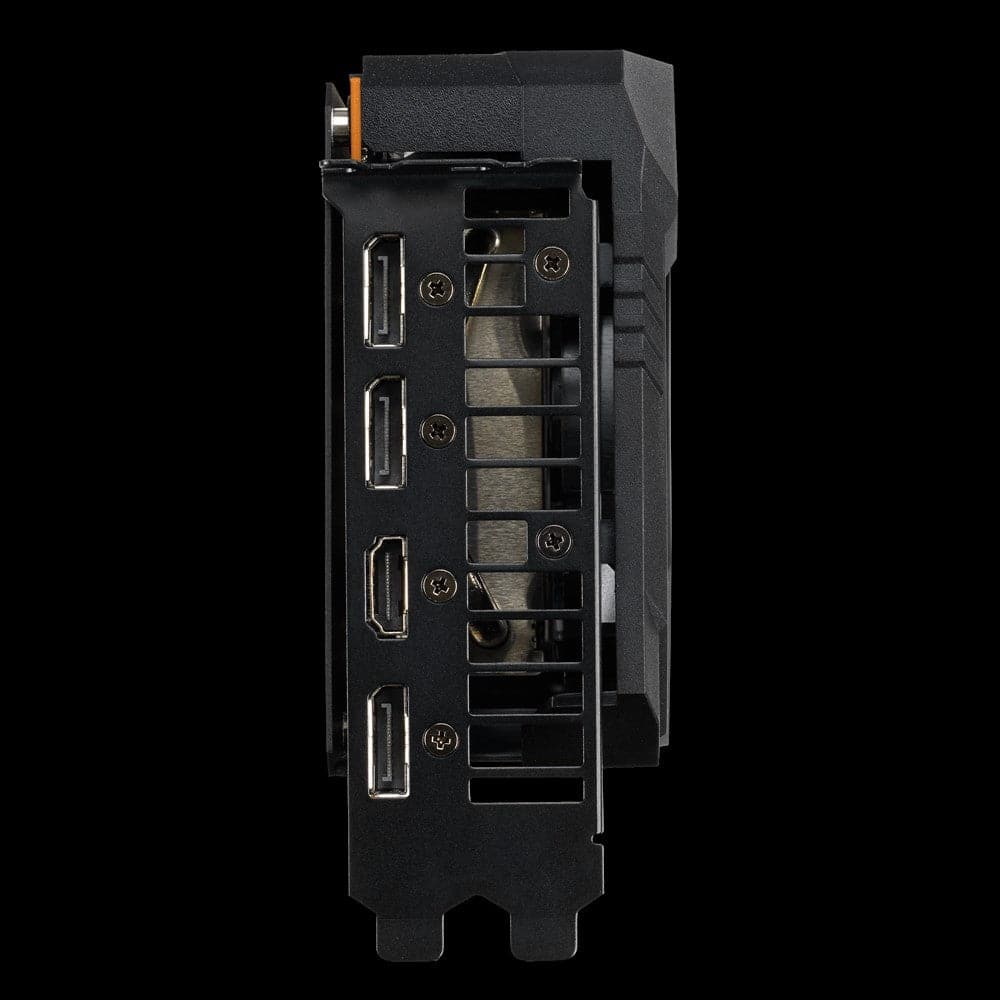

Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (DisplayPort 1.4)
HDCP Support : Yes (2.3) -
Maximum Display Support
6
-
NVlink/ Crossfire Support
Yes
-
Recommended PSU
600W
-
Power Connectors
1 x 6-pin, 1 x 8-pin
-
Software
ASUS GPU Tweak II & Driver
-
Dimensions
10.6 " x 5 " x 2.1 " Inch
26.9 x 12.5 x5.4 Centimeter -
Slot
2.7 slot
-
Note
* Game Frequency is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
* Crossfire supports DX12 and Vulkan only.
